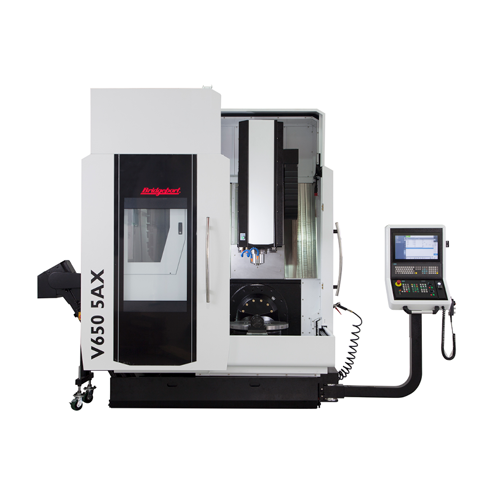

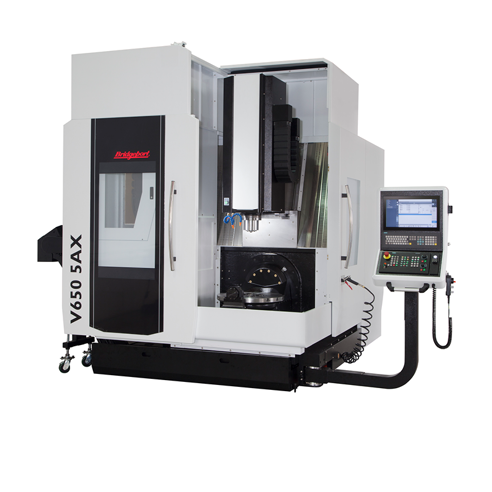

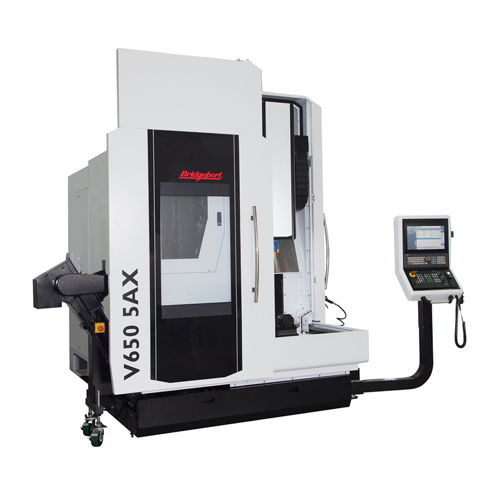

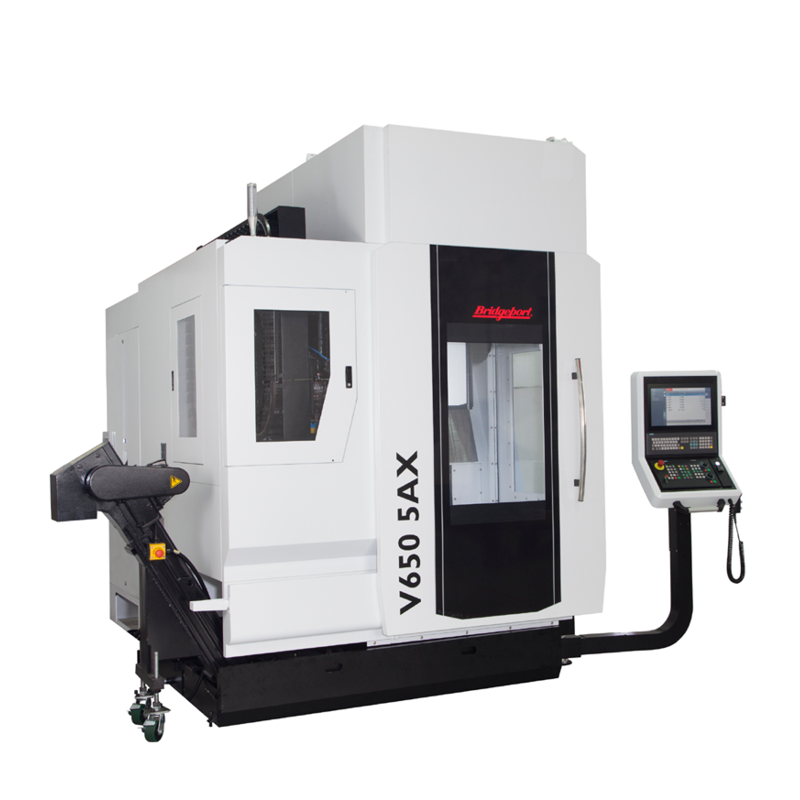

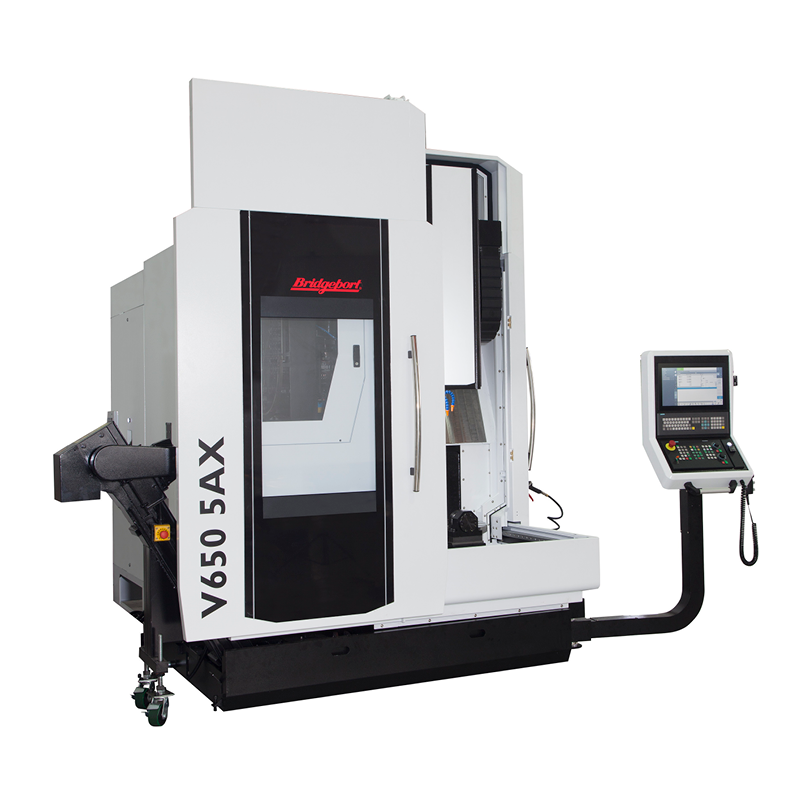

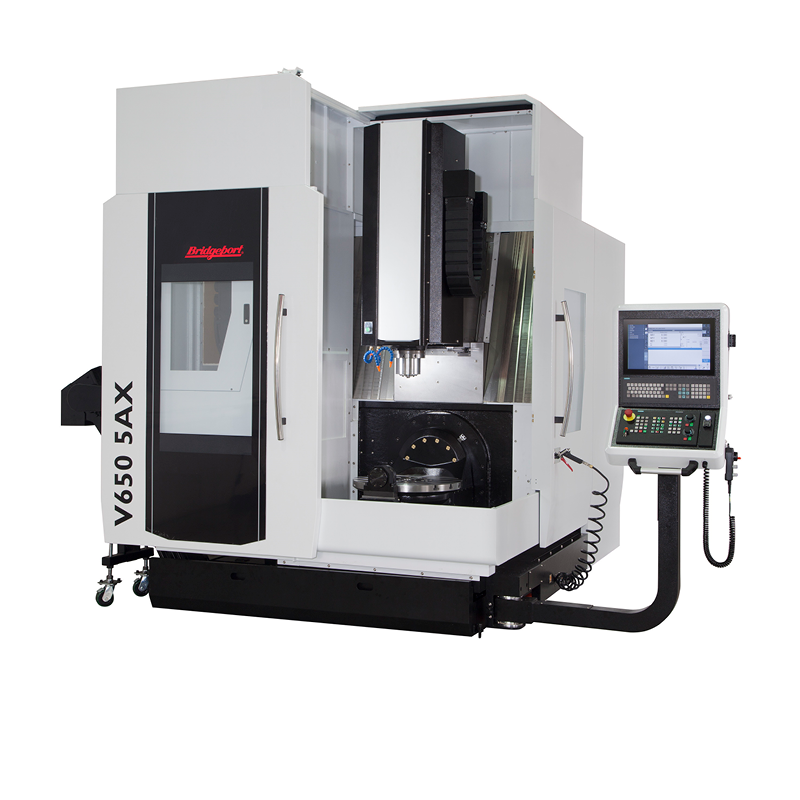

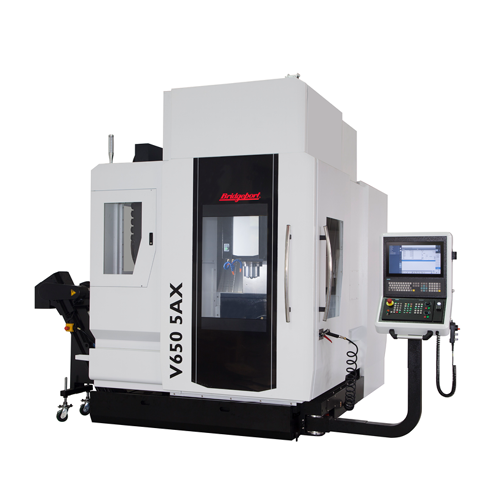

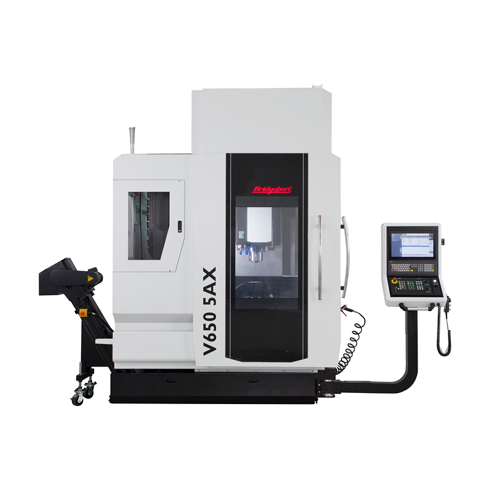

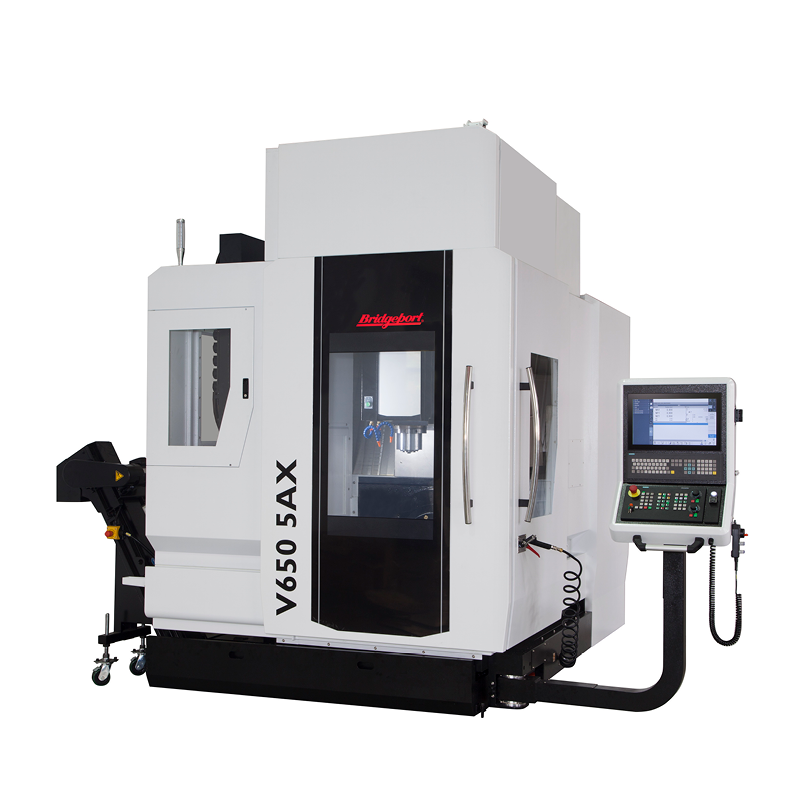

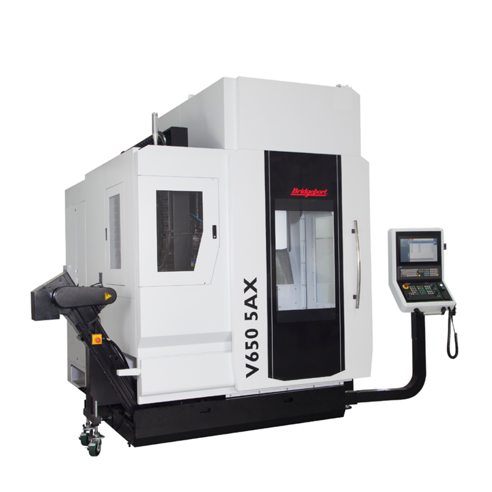

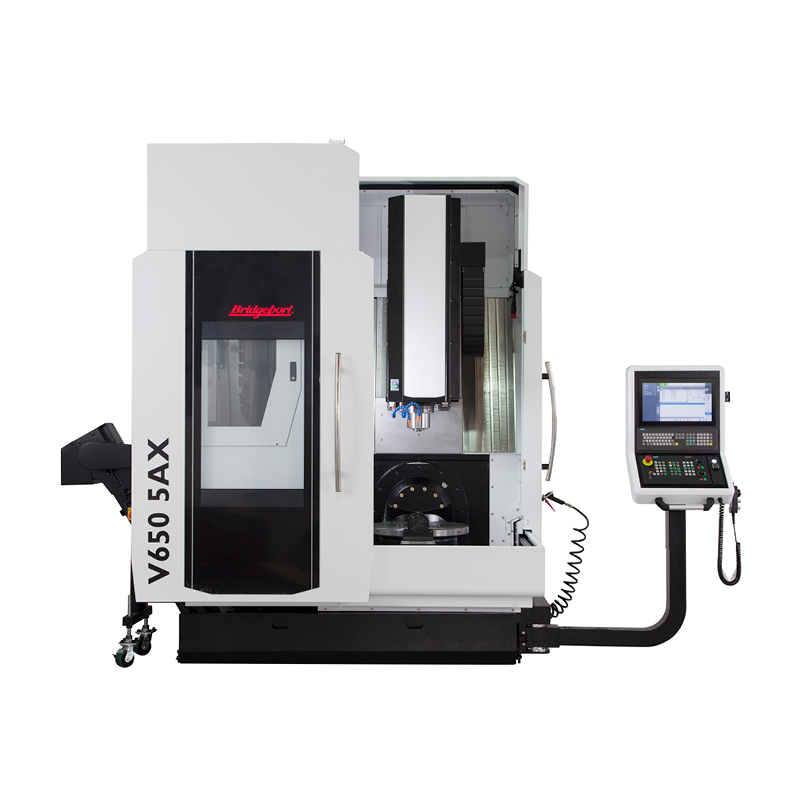

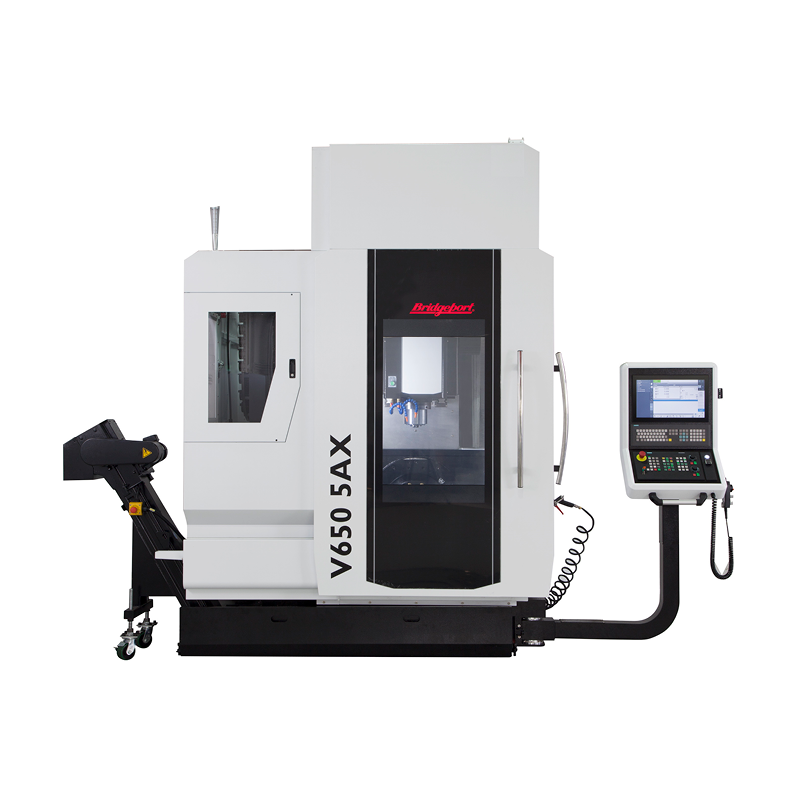

Bridgeport V650 5AX 5-Axis VMC

Bridgeport V650 5AX 5-Axis vertical machining centre is developed and designed to meet the processing needs of complex parts in high precision manufacturing industries.

5-Axis VMC

  • X-Axis travel (mm) = 620
  • Y-Axis travel (mm) = 520
  • Z-Axis travel (mm) = 460
  • 5-Axis rotary table diameter (mm) = 650
  • Spindle taper = BBT 40
  • Spindle Speed (rpm) = 15,000

Get in touch

Bridgeport V650 5AX 5-Axis vertical machining centre is developed and designed to meet the processing needs of complex parts in high precision manufacturing industries.

The high-quality grey cast iron box-type bed design improves the rigidity of the bed structure, whilst the optimised design of the headstock structure enhances thermal stability.

The X/Y/Z axes adopt precision grade roller linear guide rails and heavy-duty sliders to enhance the load-carrying capacity of the transmission system and improve the processing performance of the machine.

The B/C axis has a tighter structural design and excellent accessibility, which facilitates the integration of manual operation and automation systems.

The latest generation of high-end CNC system from Siemens, Sinumerik One, adopts a newly designed hardware platform, which improves the operation speed and precision in an all-round way. The integrated machine simulation function provides users with advanced program and cycle simulation.

Standard Features

• Controller: SINUMERIK ONE, 19" Screen
• 15000rpm DDS Spindle (With Chiller)
• BBT40 Tool Magazine Auto Door
• Worm Gear Type B/C Axis
• B/C Axis Encoder
• Surround Tool Coolant
• Coolant Chip Flush & Coolant Wash Gun
• Auto Central Grease Lubrication
• Automatic Power Off
• Remote MPG Hand Wheel
• 2 Colour Stack Light, LED
• Electrical Cabinet Chiller

Optional Features


• Chain Type Magazine ATC, 60 Tools
• Built-in Motor Type for B/C Axis
• Coolant Through Spindle (CTS) 20bar
• Air Gun
• Cutter Air Blast
• Hinge Type Chip Conveyor
• Scraper Type Chip Conveyor
• Chip Cart
• X/Y/Z Axis Linear Scale
• Part Probe
• Table Hydraulic Fixture, 4 Port

For more information, download the flyer and spec sheet above, click the 'Request a Quote' button above, or call us on 01924 415 000.

X-Axis travel (mm) 620
Y-Axis travel (mm) 520
Z-Axis travel (mm) 460
5-Axis rotary table diameter (mm) 650
5-Axis rotary table swing range B-Axis (Degrees) -50 / +110
5-Axis rotary table rotation C-Axis (Degrees) 360
Load capacity (kg) 300 (Horizontal) / 200 (Tilt)
T-Slot (No. & size) (mm) 5 x 18
Spindle taper BBT 40
Spindle Speed (rpm) 15,000
Spindle Power (kW) 16.5
Automatic Tool Changer (ATC) type Mechanical
Tool capacity (Tools) 40
CNC control Siemens Sinumerik One 19"

Contact us for more informaton on +44 (0) 1924 415 000 / sales@colchester.co.uk
