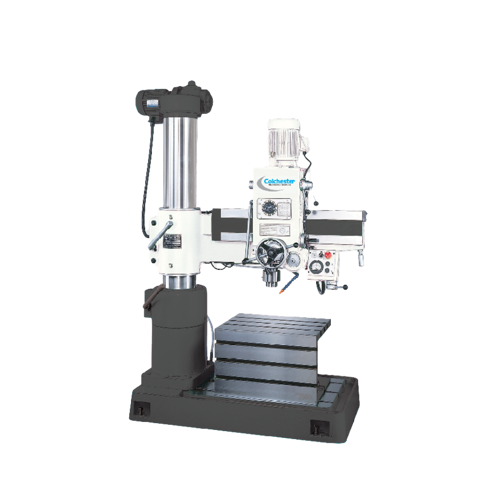

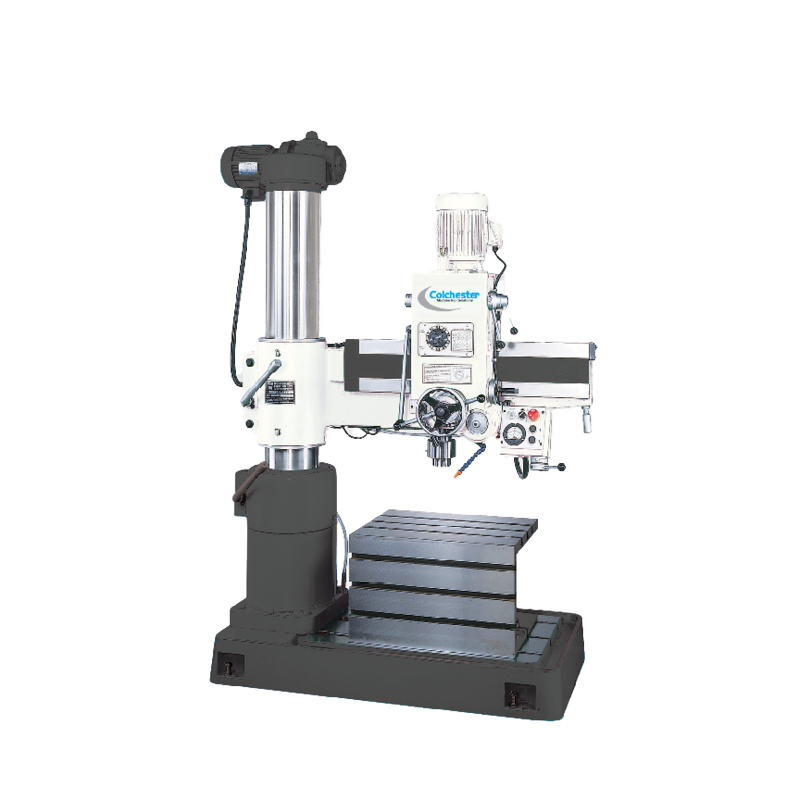

Radial Drill

Advanced range of radial drills, engineered to deliver superior precision and versatility for a variety of industrial applications.

Get in touch

Colchester's range of radial drills is renowned for their exceptional robustness and long-life cycle. The complete lineup includes ten models, from the CL720A to the CLC2500. With a steel drilling capacity of up to 80mm, our radial arm drills are engineered to handle any task with superior efficiency and speed.

Standard Features

High-Speed Gears: Constructed from Nickel-Chrome steel, our gears are heat-treated and ground to ensure exceptional durability and performance.
Premium Cast-Iron Arm: Featuring heat-treated and ground slides, our cast-iron arm guarantees smooth and precise head positioning.
Powerful Spindle Drive Motors: Engineered for heavy-duty cutting, our spindle drive motors deliver reliable performance in any environment.
Enhanced Spindle Balance Mechanism: Our specially fitted mechanism extends spring life, providing optimal balance and longevity.

Drilling Capacity - Steel (mm)	32 (Min) - 80 (Max)
Drilling Capacity - Cast Iron (mm)	50 (Min) - 100 (Max)
Tapping Capacity - Steel (mm)	25 (Min) - 65 (Max)
Tapping Capacity - Cast Iron (mm)	32 (Min) - 75 (Max)
Spindle Taper	4MT (Min) - 5MT (Max)
Spindle Power (kW)	1.5 (Min) - 7.5 (Max)

Colchester Drills Flyer (0.82MB)
