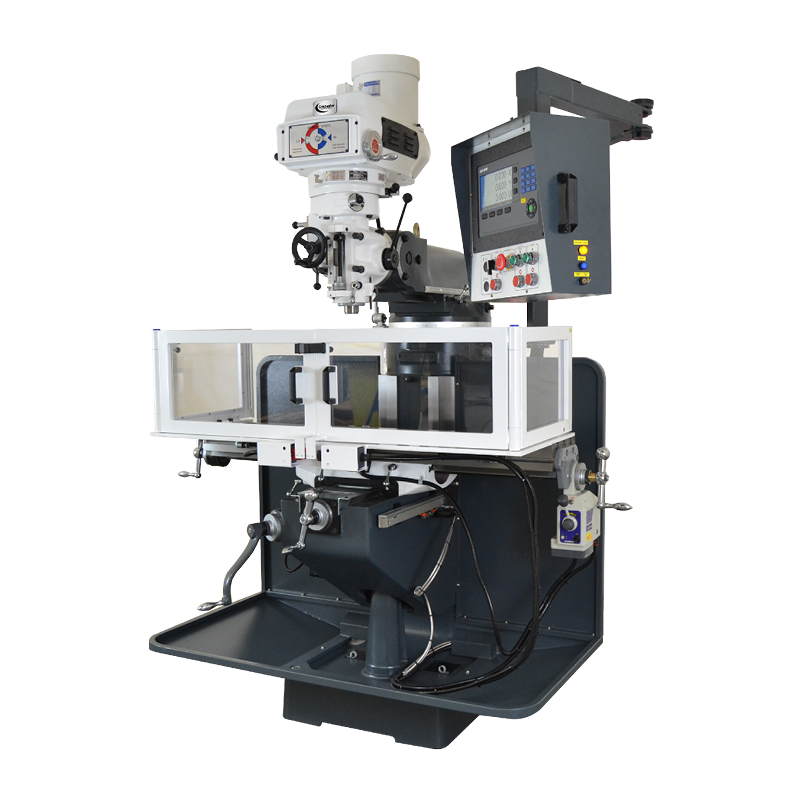

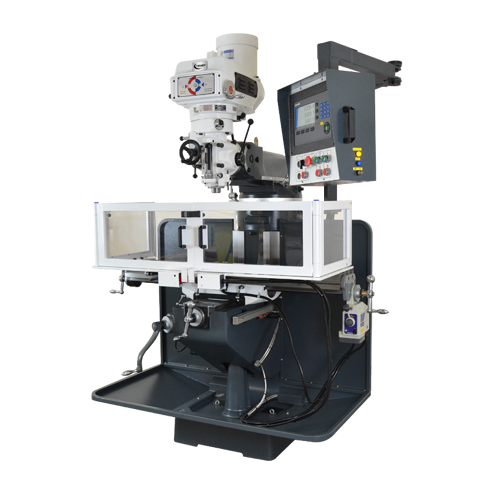

SP520VS Manual Turret Mill

All Colchester manual turret mills are heavy duty, reliable, accurate and versatile for a diverse array of machining tasks.

  • Table Size (mm) = 254 x 1370
  • X-Axis travel (mm) = 775 (680 with DRO)
  • Y-Axis travel (mm) = 410
  • Spindle Power (kW) = 2.2
  • Spindle taper = ISO 40

Get in touch

Manufactured from heavy-duty cast-iron which can be used for one-off pieces as well as small to medium size production runs, making them ideal for toolrooms.

The SP range offers a higher degree of accuracy over standard knee type mills, with spindle runout of 0.003mm, compared to 0.005mm on standard mills.

The spindles are hardened and ground and all slideways are precision hand scraped for accuracy. With a choice of 2 models offering dovetail and square ways, the SP range offers flexibility for training and toolrooms alike.

The SP range stands out as a reliable choice for those seeking precision engineering solutions, providing the accuracy and flexibility necessary for a diverse array of machining tasks.

Benefits

  • Superior accuracy with a spindle runout of 0.003mm
  • Hardened and ground spindles for enhanced durability
  • Precision hand scraped slideways for consistent accuracy
  • Available in two models with dovetail (SP150VS) and box ways (SP520VS) for versatile applications
  • Ideal for both training environments and toolroom settings

For more information, please contact us via +44 (0) 1924 415 000 or sales@colchester.co.uk.

Options Available

  • Air Power drawbar (standard on SP520VS model)

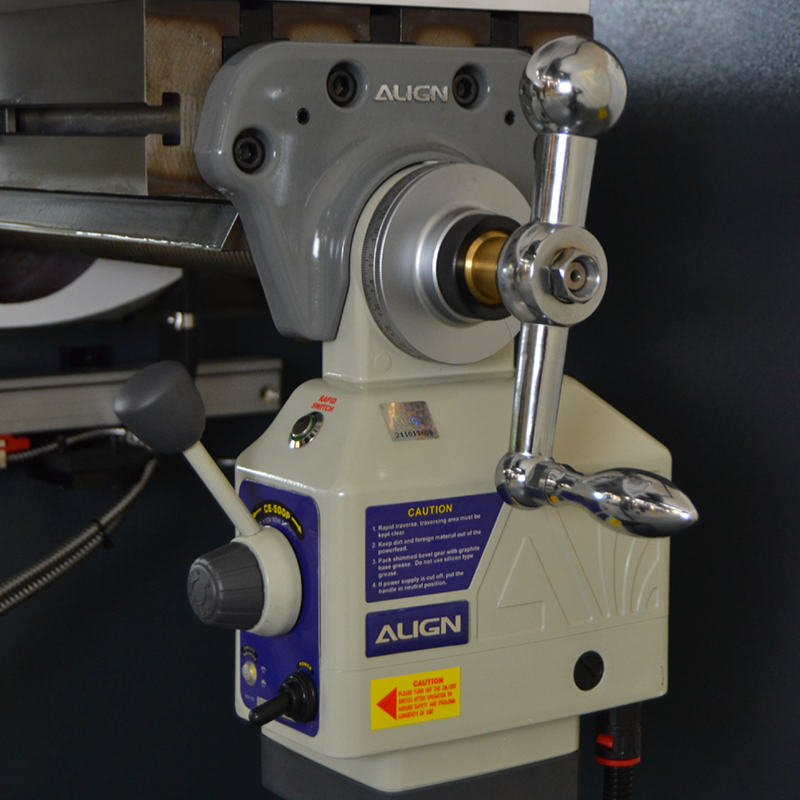

  • Y-axis power feed
  • Interlocked table guard

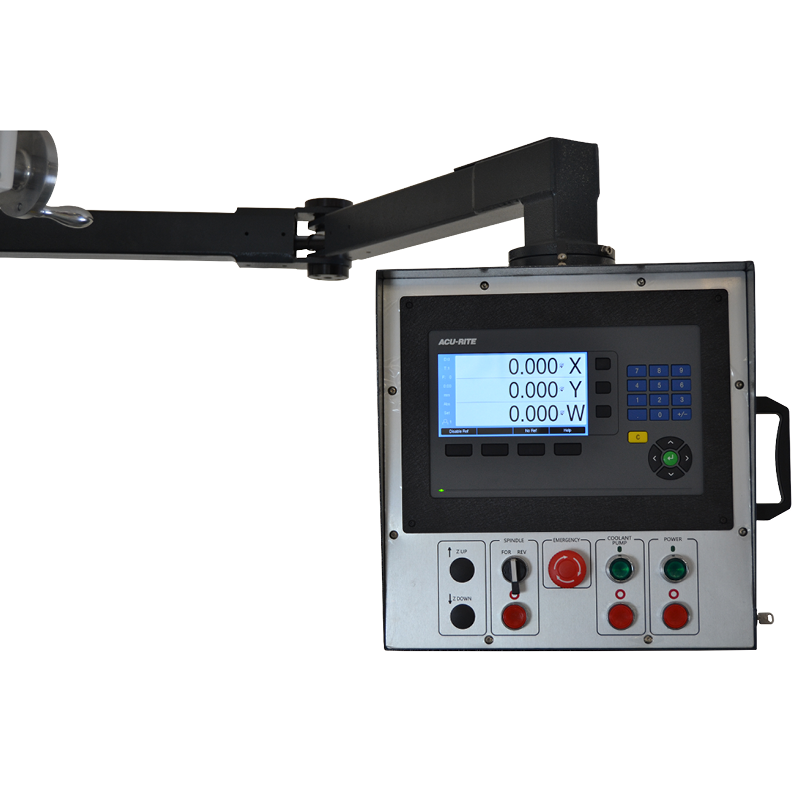

  • 2 or 3-axis Acu-rite Digital Readout

Table Size (mm) 254 x 1370
T-Slot (No. & size) (mm) 3 x 16
X-Axis travel (mm) 775 (680 with DRO)
Y-Axis travel (mm) 410
Knee travel (mm) 450
Ram travel (mm) 560
Quill travel (mm) 127
Head swivel (R/L degrees) +/- 90
Head tilt (Up/Down degrees) +/- 45
Spindle Power (kW) 2.2
Spindle Speed (rpm) 54 - 2875
Spindle taper ISO 40
