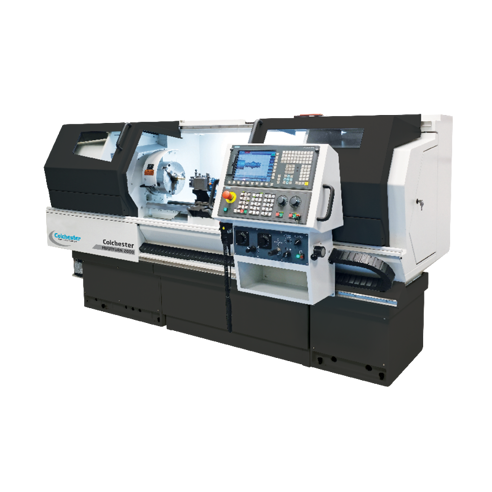

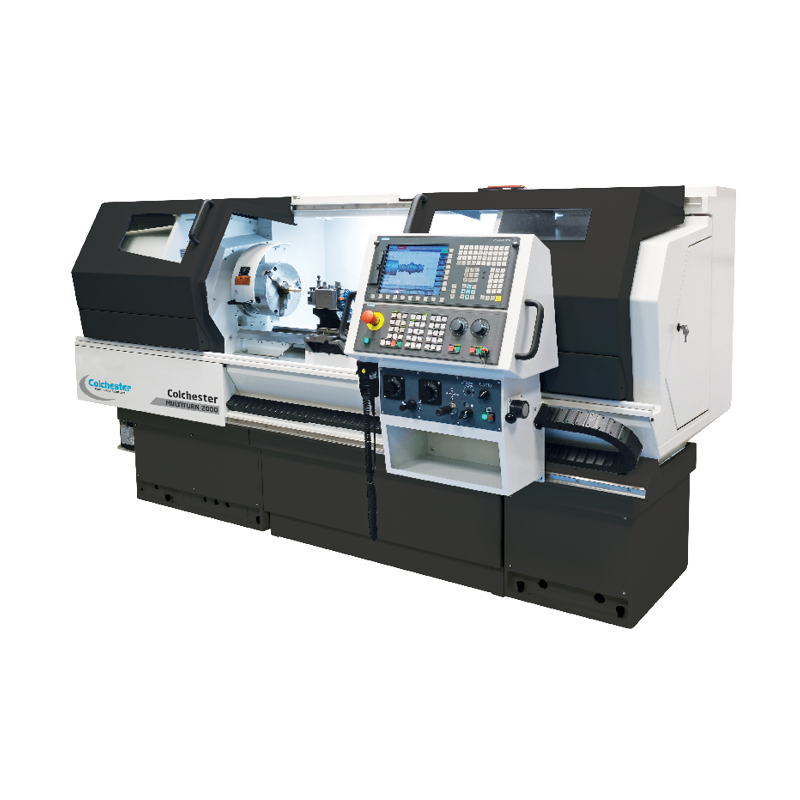

The Colchester Multiturn CNC flat-bed centre lathe range is designed for fast, high-quality repeatability, accuracy and surface finish to exacting toolroom accuracy standards (DIN 8605), which ultimately significantly reduces component production costs.
2-Axis CNC Lathe
The Multiturn flatbed configuration and bed lengths of up to 6 metres means the Colchester MultiTurn is equally at home with long shafts, billets, bar stock, castings and much, much more. The lathe hardened and ground bedways are robustly manufactured from high performance cast-iron and fully engineered for maximum CNC capability.
All Multiturn lathes are fitted with the latest state-of-the-art Siemens CNC control system with integrated ShopTurn conversational programming system making the Multiturn ideally suited for one-off and small and medium size batch machining.
Standard Features
• Siemens 828D CNC control system with 10.4” colour screen
• ShopTurn conversational programming system

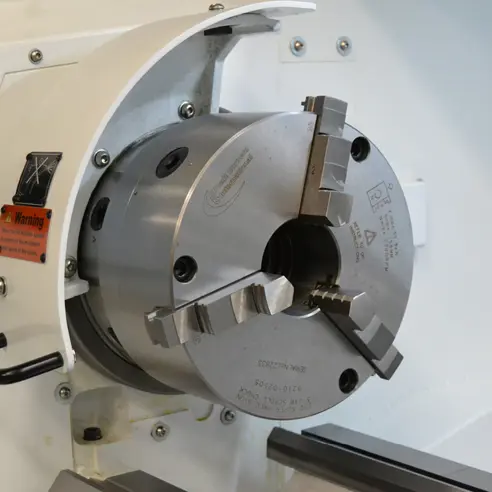

• PBI Super Precision 3-Jaw scroll chuck

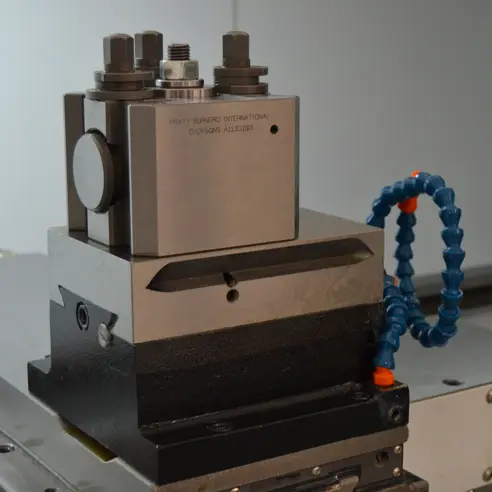

• Dickson quick change tool post and tool holders
• Automatic slideways and ballscrew lubrication system

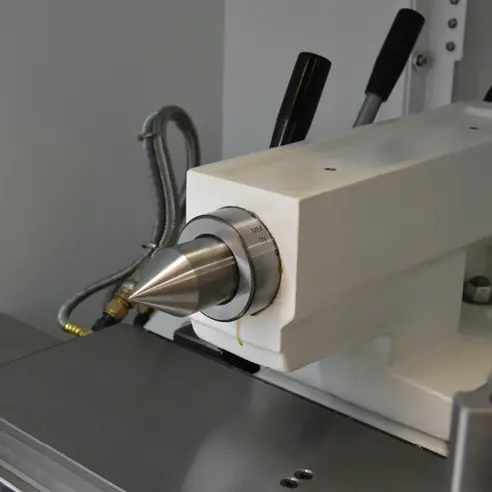

• Manual tailstock
• Coolant pump system
• Machine work light
• Roll-out swarf bin

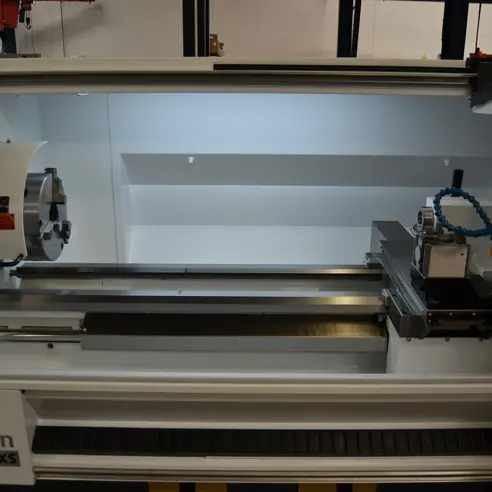

• Easy access to work zone
• Large machining envelope
• Automation ready
• Industry 4.0 ready
• Easy installation
Optional Features

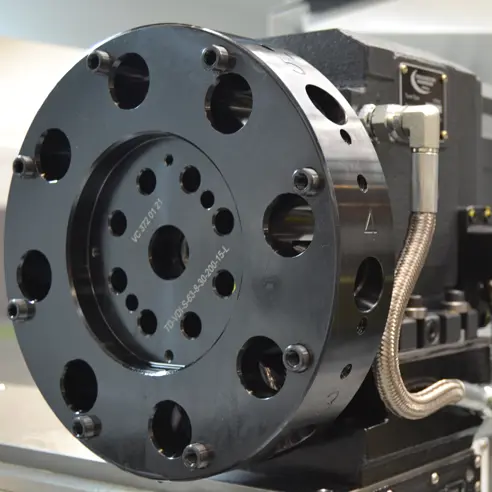

• Auto indexing tool turret
• Tooling packs
• 3 jaw scroll chuck and 4-jaw independent chuck options
• Parat & Multifix toolpost options
• Swarf conveyor

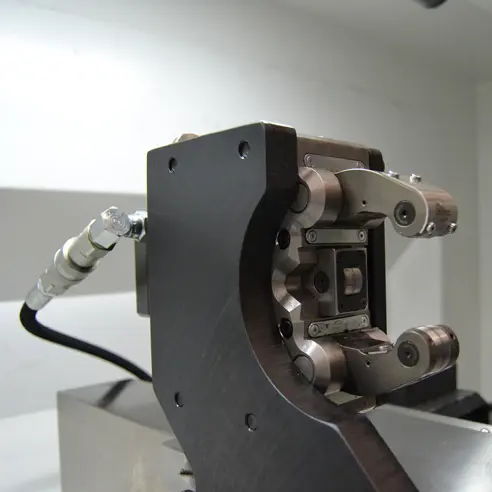

• Travelling and stationary steady rests
• Hydraulic chucking / tailstock / steady rests
• Extended warranty contracts
• Service / maintenance contracts
| Swing Over Bed (mm) | 350 |
|---|---|
| Distance Between Centres (mm) | 650 |
| Spindle Bore (mm) | 42 |
| Chuck Size (") | 8 |
| CNC Control System | Siemens 828D |
| C-axis / Driven Tools | No |
| Spindle Nose (Camlock) | D1-4 |
| Spindle Speed Range (rpm) | 1 - 3500 |
| Spindle Power (kW) | 7 |
| Swing in Gap (mm) | 535 |
| Swing Over Cross Slide (mm) | 196 |
