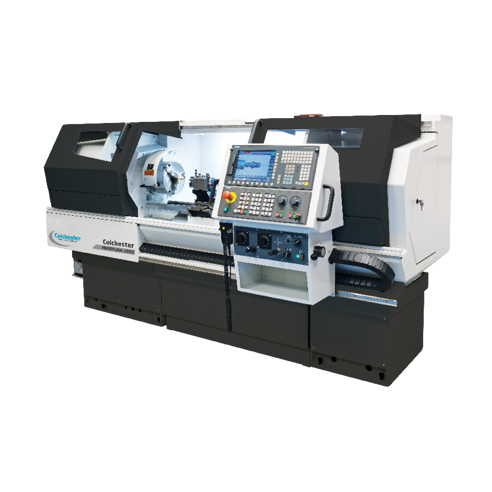

The Colchester Multiturn XC 3-axis CNC flat-bed lathe range combines turning with driven tool and C-axis functionality, ideally suited for one-off and small and medium size batch machining.
C-Axis & Driven Tool CNC Lathe
Designed for fast, high-quality repeatability, accuracy and surface finish to exacting toolroom accuracy standards (DIN 8605), which ultimately significantly reduces component production costs.
The Multiturn XC MillTurn range incorporates turning with milling, drilling and tapping functionality, reducing the need for second operation production, and fitted with the latest state-of-the-art Siemens CNC control system with integrated ShopTurn conversational programming system makes the Multiturn the ideal machine for one-off and small and medium size batch machining.
The Multiturn flat-bed configuration and bed lengths of up to 6 metres means the Colchester MultiTurn is equally at home with long shafts, billets, bar stock, castings and much, much more. The lathe hardened and ground bedways are robustly manufactured from high performance cast-iron and fully engineered for maximum CNC capability.
Standard Features
• Siemens 828D CNC control system with 10.4” colour screen
• ShopTurn conversational programming system
• PBI Super Precision 3-Jaw scroll chuck
• Auto indexing driven tool turret
• Cs axis control
• Hydraulic main spindle holding brake
• Automatic slideways and ballscrew lubrication system
• Manual tailstock
• Coolant pump system
• Machine work light
• Roll-out swarf bin
• Easy access to work zone
• Large machining envelope
• Automation ready
• Industry 4.0 ready
• Easy installation
Optional Features
• Tooling packs
• 3 jaw scroll chuck and 4-jaw independent chuck options
• Swarf conveyor
• Travelling and stationary steady rests
• Hydraulic chucking / tailstock / steady rests
• Extended warranty contracts
• Service / maintenance contracts
| Swing Over Bed (mm) | 554 |
|---|---|
| Distance Between Centres (mm) | 1500 / 2000 / 3000 / 4000 |
| Spindle Bore (mm) | 104 |
| Chuck Size (") | 12 |
| CNC Control System | Siemens 828D |
| C-axis / Driven Tools | Yes |
| Spindle Nose (Camlock) | D1-11 |
| Spindle Speed Range (rpm) | 1 - 2000 |
| Spindle Power (kW) | 11 |
| Driven Tool Maximum Speed (rpm) | 6000 |
| Driven Tool Spindle Power (kW) | 3.7 |
| Number of Tool Stations | 8 (4 Driven) |
| Tooling Type | VDI 40 / DIN 1809 |
| Swing in Gap | 830 |
| Swing Over Cross Slide (mm) | 370 |
