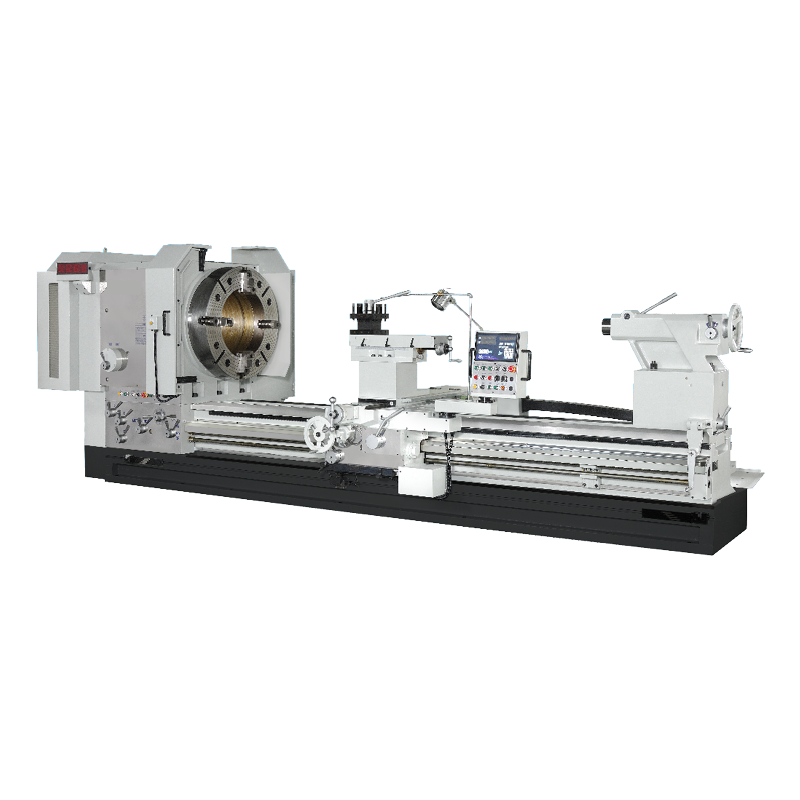

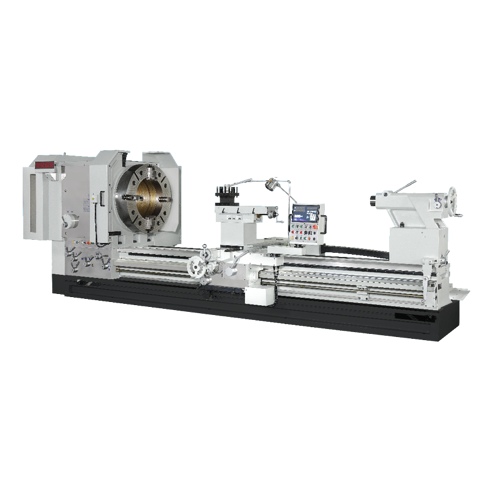

Manufactured with a one-piece bed, floor type casting, the Magnum HD series of large capacity, high specification manual and CNC lathes give more versatility to specialise, ultra heavy duty machining applications.

The high-quality casting construction assures optimum rigidity and stability for years of trouble-free operation. Machines are available in up to 12m distance between centres and are ideal for ultra heavy duty, large capacity applications.

The Magnum HD centre lathe outline specifications are shown below, but for a more comprehensive list of features, please click on the brochure download or contact us on +44 (0) 01924 415000.

Standard Features

• One piece bed, floor type casting
• Alloy steel spindle with opposed taper roller bearings
• 2 shear bed way with extra way supporting the apron.
• All ways are hardened and ground.
• Hardened and ground gears and shafts
• Electromagnetic spindle brake
• 4-way tool post and tool holders
• Manual tailstock with saddle pin body movement
• Coolant pump system
• Machine work light
• 18 speed geared headstock
• Rapid power traverse to saddle, cross slide and top slide

Optional Features

• 3 jaw scroll chuck and 4-jaw independent chuck options
• Rear chuck options with chuck guard
• Travelling and stationary Steady rests
• Taper turning attachment
• Extended warranty contracts
• Service / maintenance contracts
