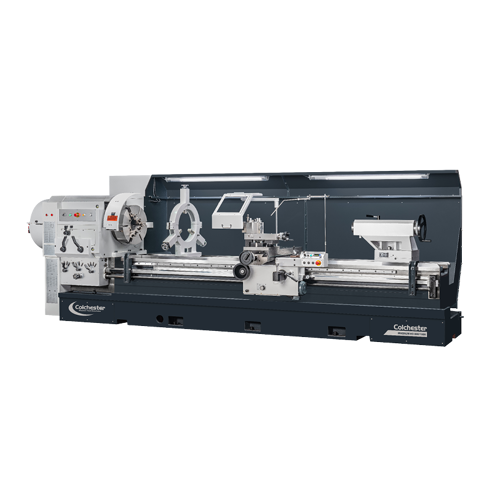

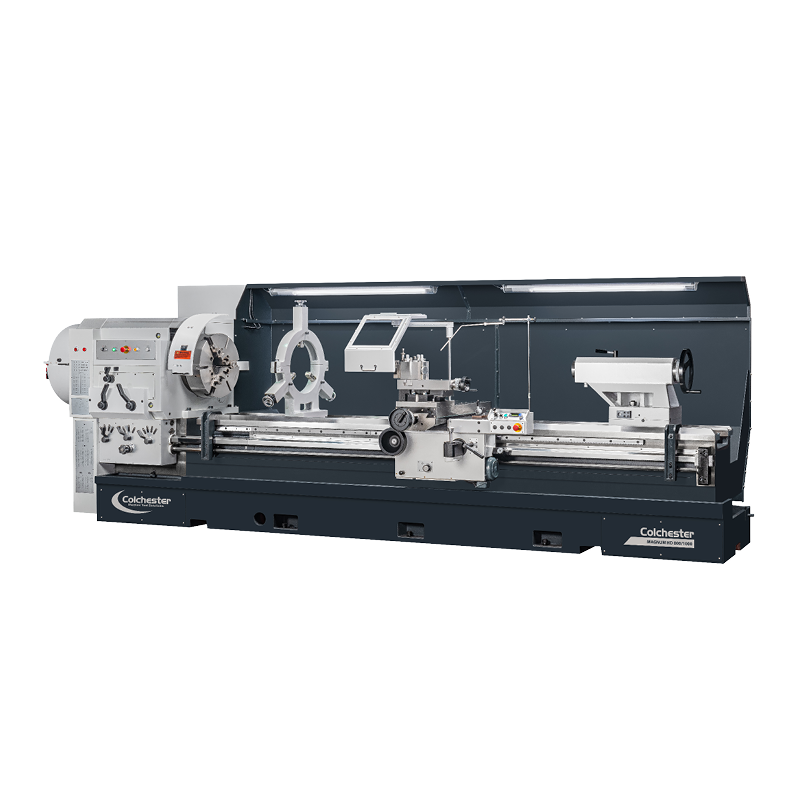

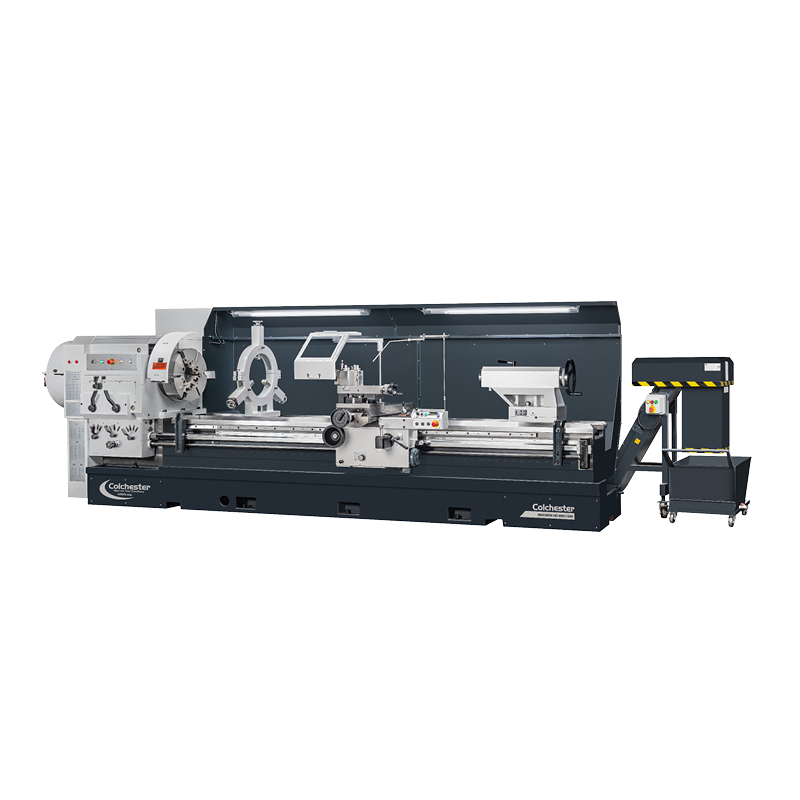

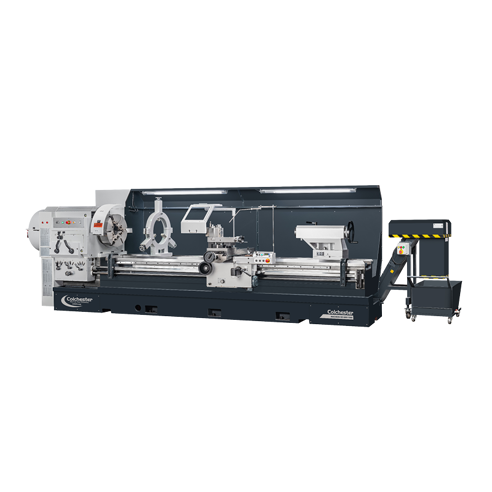

Manufactured with a one-piece bed, floor type casting, the Magnum HD series of large capacity, high specification manual and CNC lathes give more versatility to specialise, ultra heavy duty machining applications.

The high-quality casting construction assures optimum rigidity and stability for years of trouble-free operation. Machines are available in up to 8m distance between centres and are ideal for ultra heavy duty, large capacity applications.

The Magnum HD centre lathe outline specifications are shown below, but for a more comprehensive list of features, please click on the brochure download or contact us on +44 (0) 01924 415000.

Standard Features

• One piece bed, floor type casting
• Variable speed spindle speed drive with 4 gear ranges
• Induction hardened & ground bedways.
• Hardened and ground gears and shafts
• Hydraulic spindle brake
• Manual tailstock with saddle pin body movement
• Coolant pump system
• Machine work light
• Rapid power traverse to saddle, cross slide

Optional Features

• 3 jaw scroll chuck and 4-jaw independent chuck options
• Rear chuck options with chuck guard
• Travelling and stationary Steady rests
• Taper turning attachment
• Extended warranty contracts
• Service / maintenance contracts
