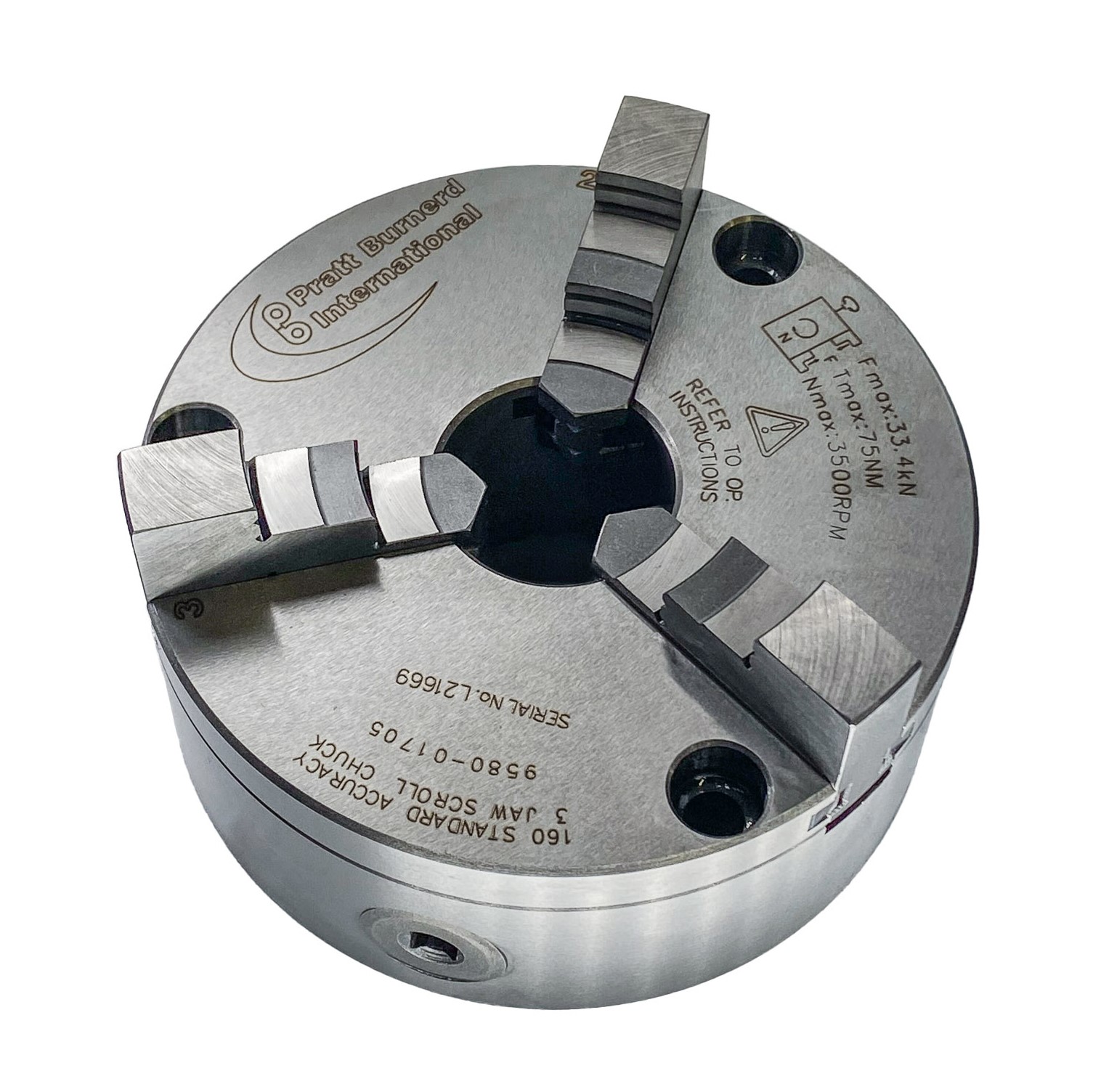

160mm 3 Jaw Standard Accuracy Pratt Burnerd Chuck
Introduced as an economic alternative to the Super Precision chuck, these slightly slower rated chucks are an ideal replacement for fitting to an older lathe where high speed and super accuracy are not such an issue.
Need help?
Call our Spares team on 01924 412603
- Delivery within 2 - 4 days
- Manufacturer's Guarantee
- Manufactured by Colchester Machine Tool Solutions
They also have a body made from high strength nodular iron with hardened and ground jaw strips and convenient, through the body mounting holes.
These chucks use the same wide range of ready to fit adaptor plates as Super Precision chucks.
ISO 3089: 1991 (E) Class ll
¦ 100µm T.I.R. up to 160mm, 150µm T.I.R. 200 to 250mm,
315mm and above 200µm T.I.R.
¦ Repeatability 25µm on all sizes
¦ Three hardened pinions
¦ Complete with one of set each hard inside and hard outside jaws
We supply soft blank jaws for all above models please ask for details
| Chuck Diameter (mm) | 160 |
|---|---|
| Product Type | Pratt Burnerd Chuck |
