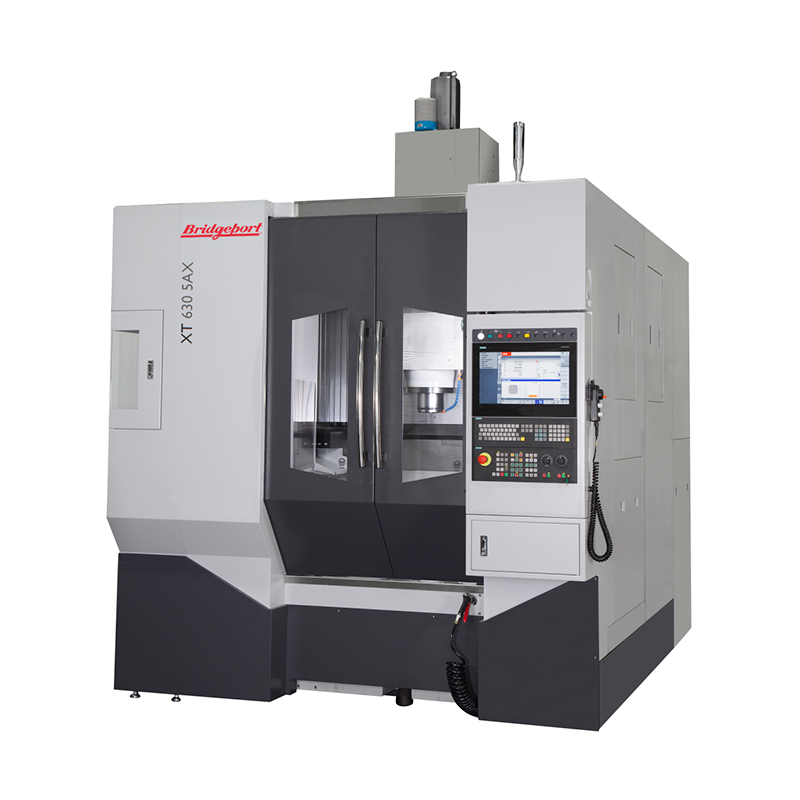

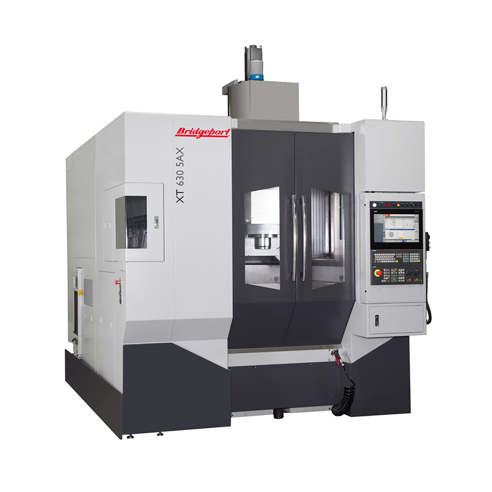

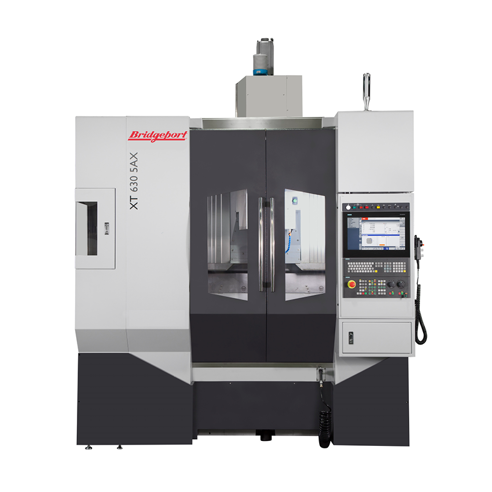

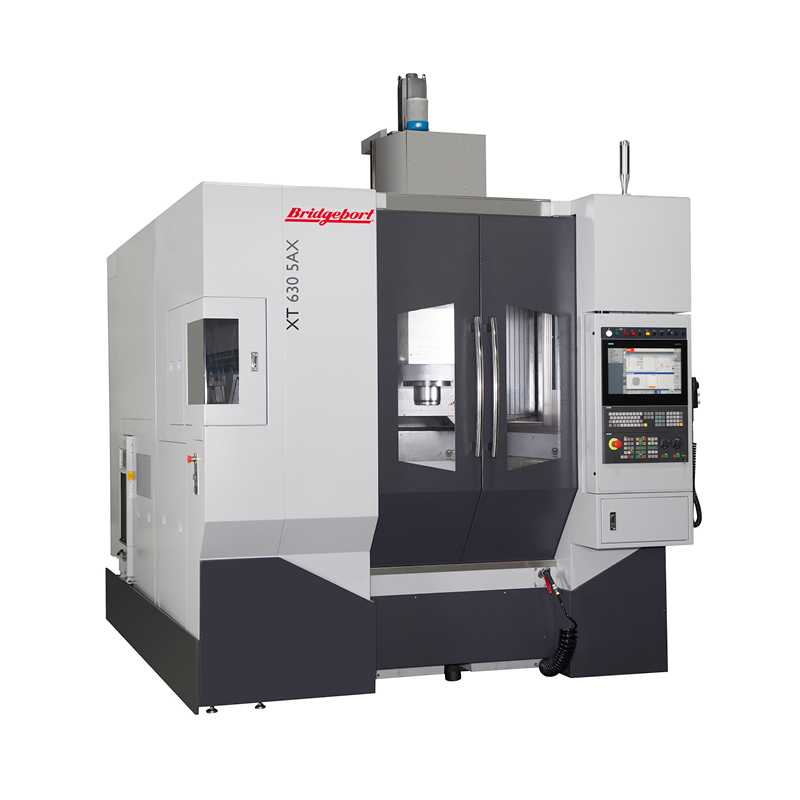

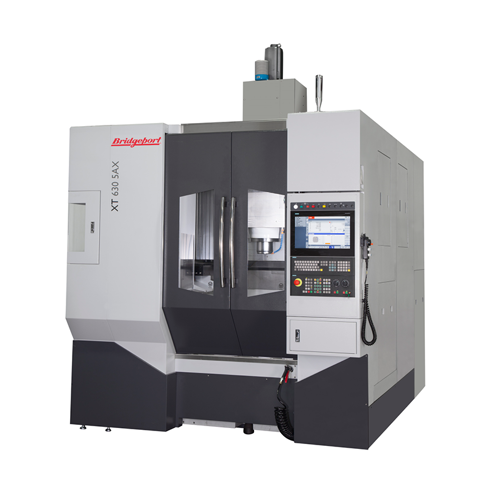

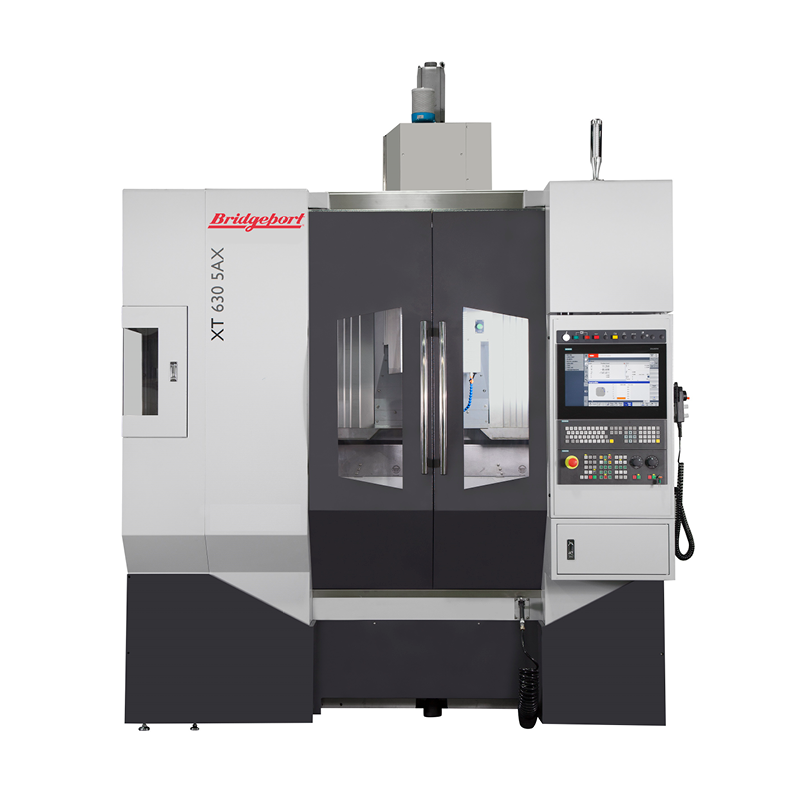

Bridgeport XT 630 5-Axis VMC

The innovative Bridgeport XT 630 5AX 5- axis machining centre represents the first of a new generation of machining centres from Bridgeport. It features a travelling beam structure that extends the machining performance in terms of complexity, capacity and geometric and positioning accuracy.

5-Axis VMC

X-Axis travel (mm) = 762
Y-Axis travel (mm) = 630
Z-Axis travel (mm) = 610
5-Axis rotary table diameter (mm) = 630
Spindle taper = BT 40 (BBT 40 option)
Spindle Speed (rpm) = 15,000

Get in touch

The 630mm diameter table on the XT 630 5AX accommodates a table load capacity of 350kg coupled with 850mm swing diameter. This creates the capacity for complex machining solutions demanded by aerospace, automotive, power generation, medical, mould tool and die and other high precision manufacturing sectors.

The XT 630 5AX machine has a rigid structure that has been developed using FEA analysis and incorporates a travelling beam construction that positions the linear axes independent of the work piece.

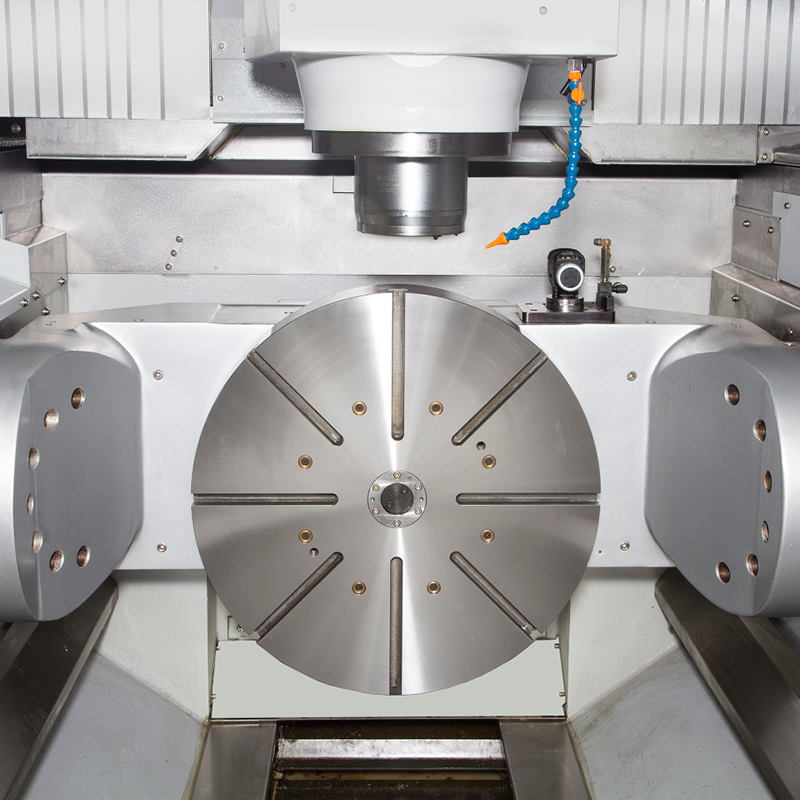

The work piece is located on a stiff trunnion table for the two rotary axes which features twin motors in the tilt axis. These enhance the geometric and positioning accuracy when compared with the designs and structures that are used in the manufacture of more conventional 5 axis machines.

The travelling beam with the three linear axes and the trunnion table with twin rotary axes are both located on a rigid one-piece base casting weighing over 5 tons.

Standard Features

• Remote MPG Hand Wheel
• A-Axis Rotary Encoder
• Levelling Pad and Screw
• Work Light
• Auto Central Grease Lubrication
• Coolant Chip Flush
• Coolant Wash Gun, Automatic
• Surround Tool Coolant
• Spindle Chiller
• Ball nut & End Bearing chiller
• Tri-colour Light Tower
• Tool Magazine Auto Door

Optional Features

• C Axis Rotary Encoder
• X / Y / Z Axis Linear Scale
• 500 mm wide Chip Conveyor, Hinge Type & Scraper
• Coolant Through Spindle
• CTS Preparation with Deublin Rotary Union
• Mist Collector
• Front Door Light Curtain
• Tool & Part Probe
• Dynamic Collision Monitoring
• Kinematic alignment

X-Axis travel (mm)	762
Y-Axis travel (mm)	630
Z-Axis travel (mm)	610
5-Axis rotary table diameter (mm)	630
5-Axis rotary table tilting A-Axis (Degrees)	-120 / +30
5-Axis rotary table rotation C-Axis (Degrees)	360
Load capacity (kg)	350
T-Slot (No. & size) (mm)	8 x 14
Spindle taper	BT 40 (BBT 40 option)
Spindle Power (kW)	19.5 (Heidenhain) / 14 (Siemens)
Spindle Speed (rpm)	15,000
Automatic Tool Changer (ATC) type	Swing arm
Tool capacity (Tools)	24 / 48 / 60
CNC control	Heidenhain TNC 640 19" / Siemens Sinumerik ONE 19"

Bridgeport XT 630 5-Axis VMC Flyer (4.46MB)
