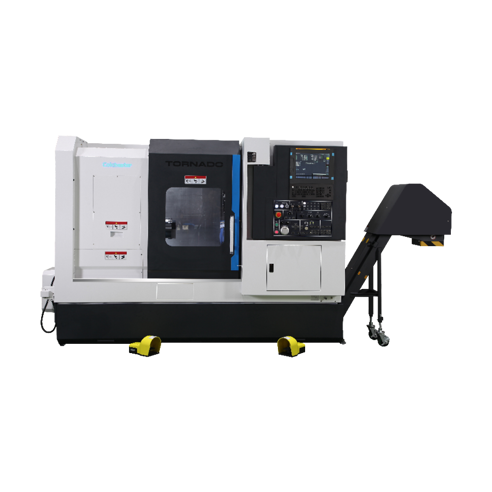

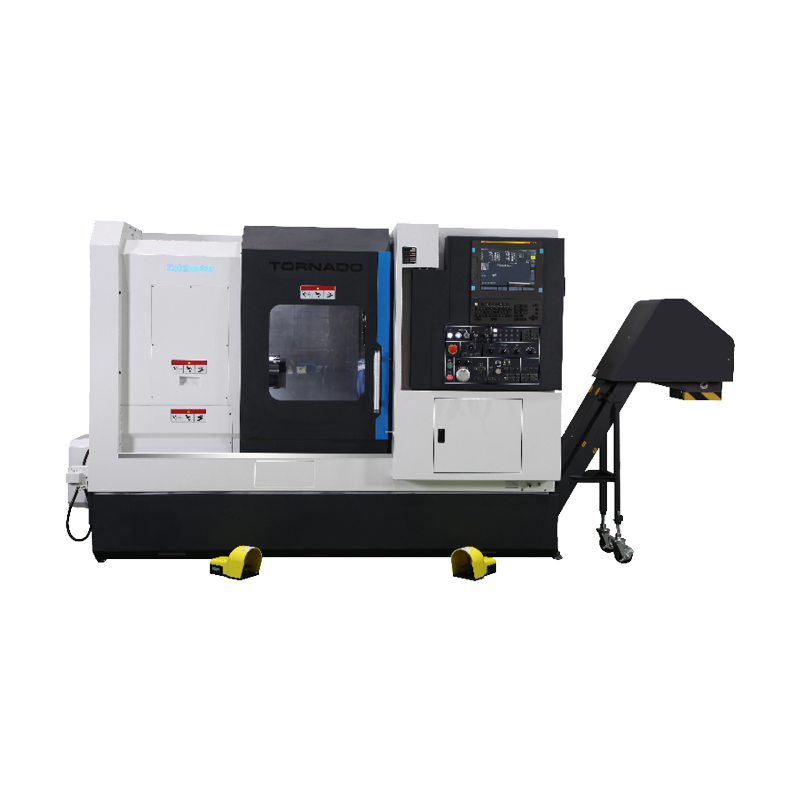

Colchester Tornado SL25 MSY Sub-Spindle CNC Turning Centre

Request a quote

The Tornado SL25 MSY is designed to deliver unparalleled productivity and versatility with its integrated sub-spindle and Y-axis capabilities.

This advanced CNC turning centre supports 5-axis single-hit machining, allowing manufacturers to efficiently produce complex components with exceptional precision and speed.

By automatically transferring workpieces from the main spindle to the sub-spindle, the Tornado SL25 MSY facilitates seamless turning, milling, and drilling on both sides of the component. This eliminates the need for multiple setups, drastically reducing cycle times and improving overall throughput.

The addition of the Y-axis expands the machine’s functionality, enabling precise off-centre milling for keyways, flats, and contoured surfaces, further enhancing its capability to produce intricate parts with superior accuracy.

With its advanced technology and multi-tasking capabilities, the Tornado SL25 MSY is an essential asset in any production environment, providing a powerful solution for achieving both superior accuracy and extraordinary efficiency.

Benefits

  • Integrated sub-spindle for seamless workpiece transfer and dual-side machining
  • 5-axis single-hit machining for reduced cycle times and increased productivity
  • Y-axis machining for precise off-centre milling of complex geometries
  • Advanced milling and drilling capabilities for greater part complexity and flexibility
  • Perfect for industries requiring high precision and efficiency
Swing Over Bed (mm) 550
Max. Cutting Diameter (mm) 290
Max. Cutting Length (mm) 522
Max. Spindle Speeds (rpm) 5000 (Main) 6000 (Sub)
Spindle Motor Power (kw) 15 (Main) 11 (Sub)
Spindle Bore Size (mm) 52

For more information and full spec & model details, please view the Spec Table document in the 'Downloads' section, or contact us on +44 (0) 1924 415 000 / sales@colchester.co.uk.
