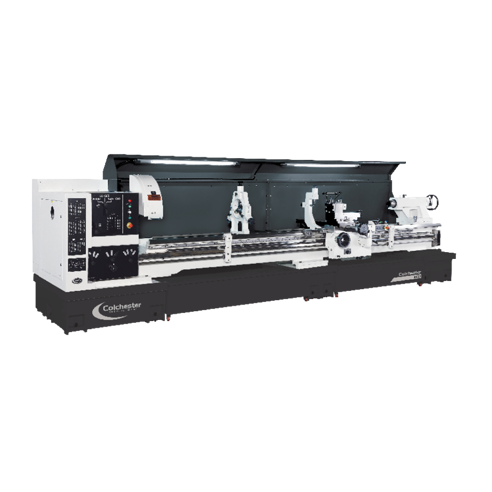

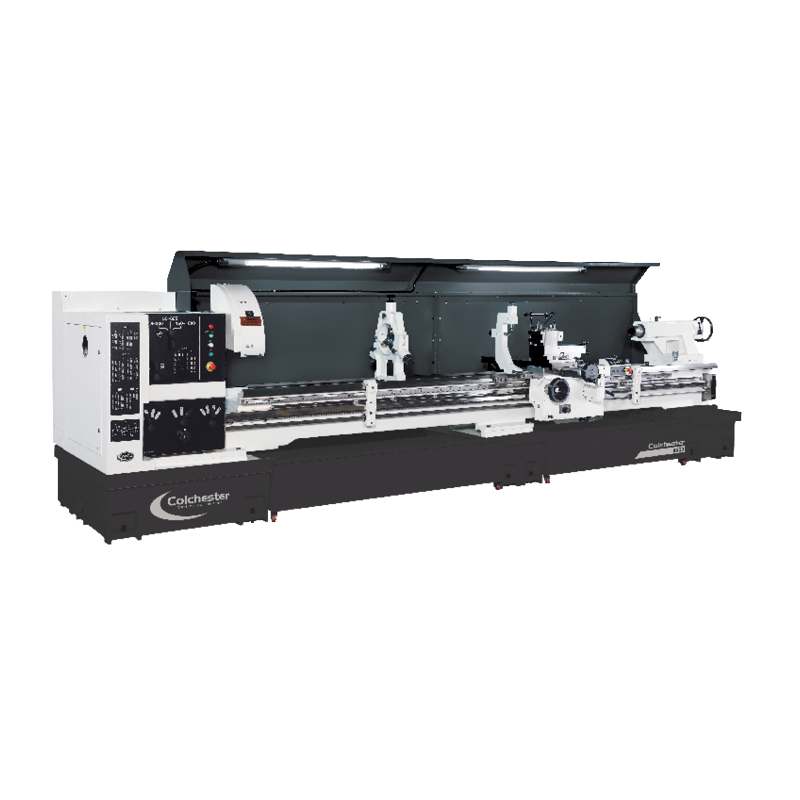

The Colchester Magnum VS and Harrison V660 are robust, heavy duty, variable speed centre lathes, renowned for superior heavy duty performance providing outstanding value for money.
With a swing capacity of 670mm, the Colchester Magnum / Harrison V660 manual centre lathe is built to withstand rugged, heavy duty use for customers in the heavy turning sector.
Its ‘big brother’, the Colchester Magnum LS / Harrison V800 , has a greater swing capacity of 820mm. Colchester’s heavy duty centre lathes are renowned for the best quality and highly reliable turning machines that give outstanding service, requiring the absolute minimum of maintenence over their working life.
The Magnum & Magnum LS manual centre lathes have the power, strength and standard production features to meet almost any large turning requirement in the field of oil and gas, power generation, utilities and shipbuilding.
|Distance between Centres (mm)||670|
|Swing Over Bed (mm)||1500 / 2000 / 3000 / 4000 / 5000 / 6000|
|Spindle Bore (mm)||104 / 155 / 230|
|Spindle Nose||D1-11 / A2-11 / A2-15|
|Spindle Speeds (rpm)||1800 / 1000 / 600|
|Spindle Motor Power (kW)||20|
