Unleash Precision and Performance with Griptru and Setrite Chucks from Pratt Burnerd International
Griptru chucks often employed in grinding operations, enable operators to re-align the front body of the chuck and, consequently, the workpiece in relation to the spindle nose. This feature enhances accuracy to within 0.005mm. Once aligned, the chuck will grip subsequent workpieces of the same diameter within 0.013mm. For standard operations, Griptru chucks can function as normal chucks by keeping the front body in the central position.

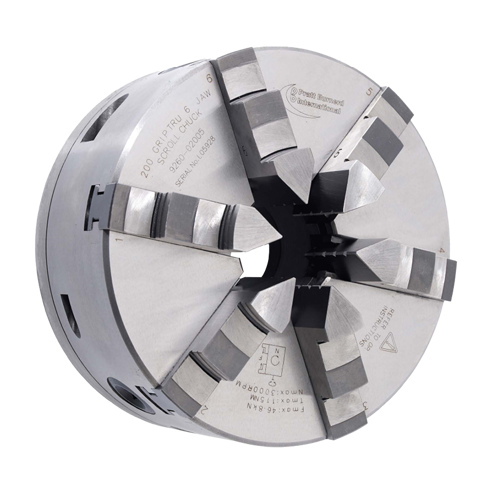

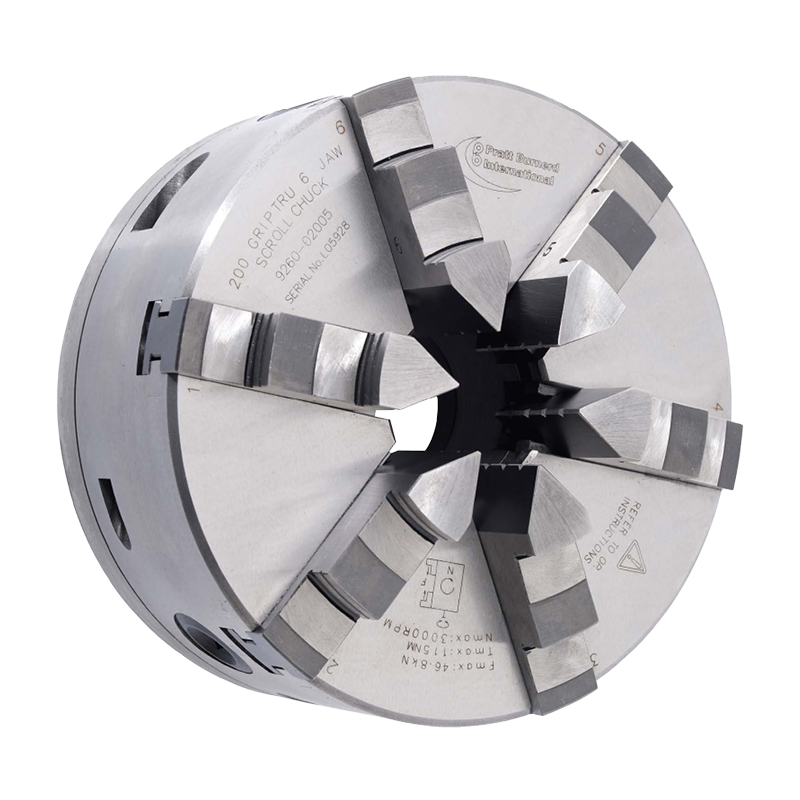

Supplied with an SG iron body, each chuck includes three hardened pinions and one set each of hard outside and hard inside jaws. Additionally, six-jaw chucks are available to minimize distortion in thin-walled components and to evenly distribute the gripping force, resulting in an improved finish.
The Setrite chuck is precision-manufactured for adapter mounting, ensuring unparalleled accuracy and reliability. It boasts a 12μm TlR repeatability on duplicate parts, underscoring its superior consistency. The design incorporates adjusting screws, allowing for fine adjustments, with standard sizes ranging from 160mm to 380mm. Constructed with a steel body, nitride-hardened scroll, and hardened pinion, the Setrite chuck is built for durability and long-lasting performance. It features two-piece American standard tongue and groove jaws, ensuring a secure grip and versatile application. Additionally, chucks with six jaws are available to reduce distortion in thin-walled components and to distribute the gripping force more evenly, resulting in a better finish.
The product's durability is unmatched, with double the contact surface of the master jaw and body compared to competitor chucks, ensuring long-term reliability and performance. Furthermore, the Setrite chuck comes with a twelve-month warranty, providing peace of mind and assurance of quality. This exceptional manufacturing precision and material quality make the Setrite chucks ideal for a wide range of applications, delivering reliable and consistent performance in any setting.
