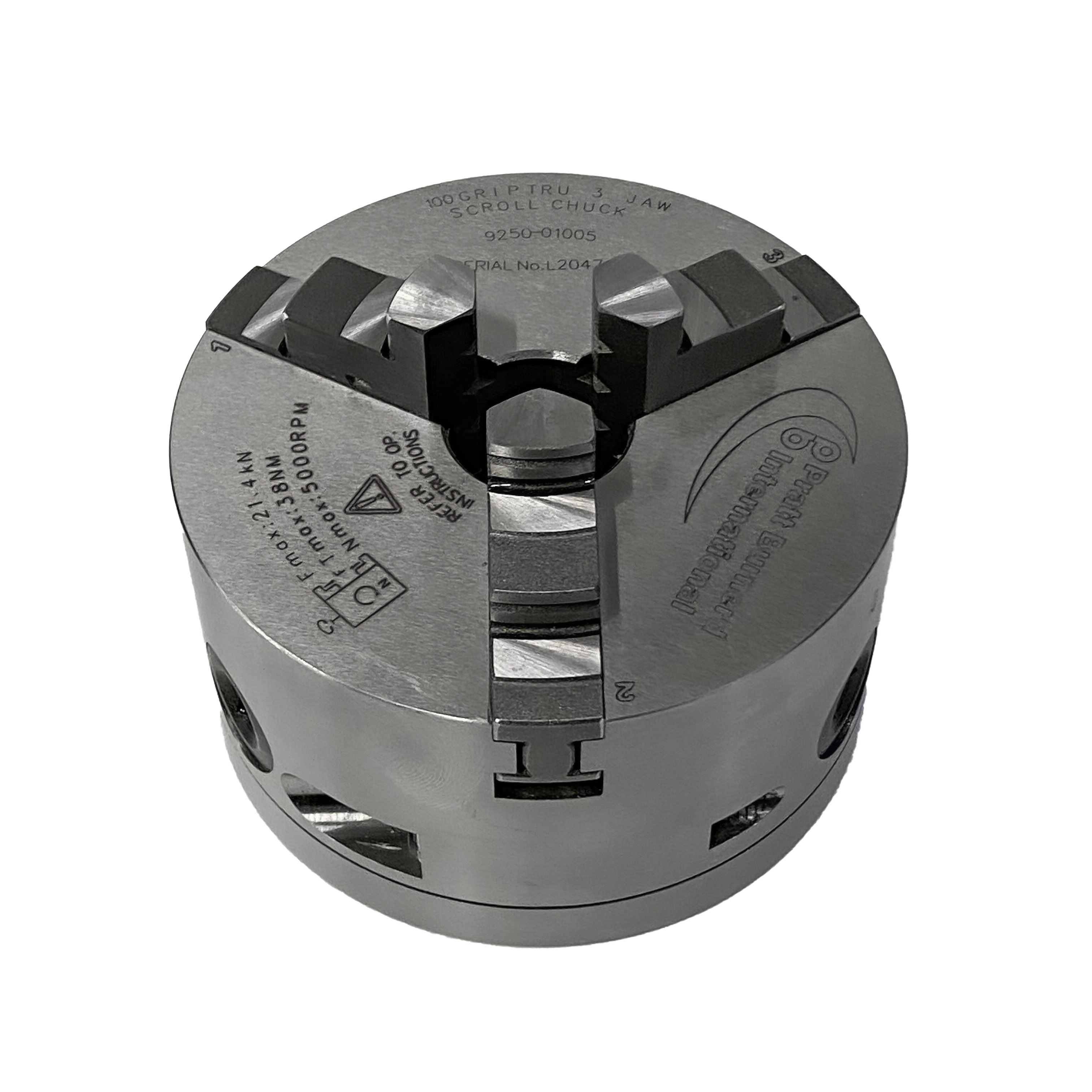

100mm 3 Jaw Griptru Pratt Burnerd Chuck

• Delivery within 2 - 4 days
• Manufacturer's Guarantee
• Manufactured by Colchester Machine Tool Solutions

Often used in grinding operations, these chucks allow the operator to re-align the front body of the chuck and therefore the workpiece in relation to the spindle nose, thus giving increased accuracy of within 0.005mm. The chuck will then grip subsequent workpieces of the same diameter within 0.013mm.

They can be used as normal chucks by leaving the front body in the centered position.

Exceeds ISO 3089: 1991 (E) Class l

¦ Micro adjustment feature allows chuck to be trued to within 0.005mm
¦ Repeatability 0.013mm on same size component
¦ Three hardened pinions

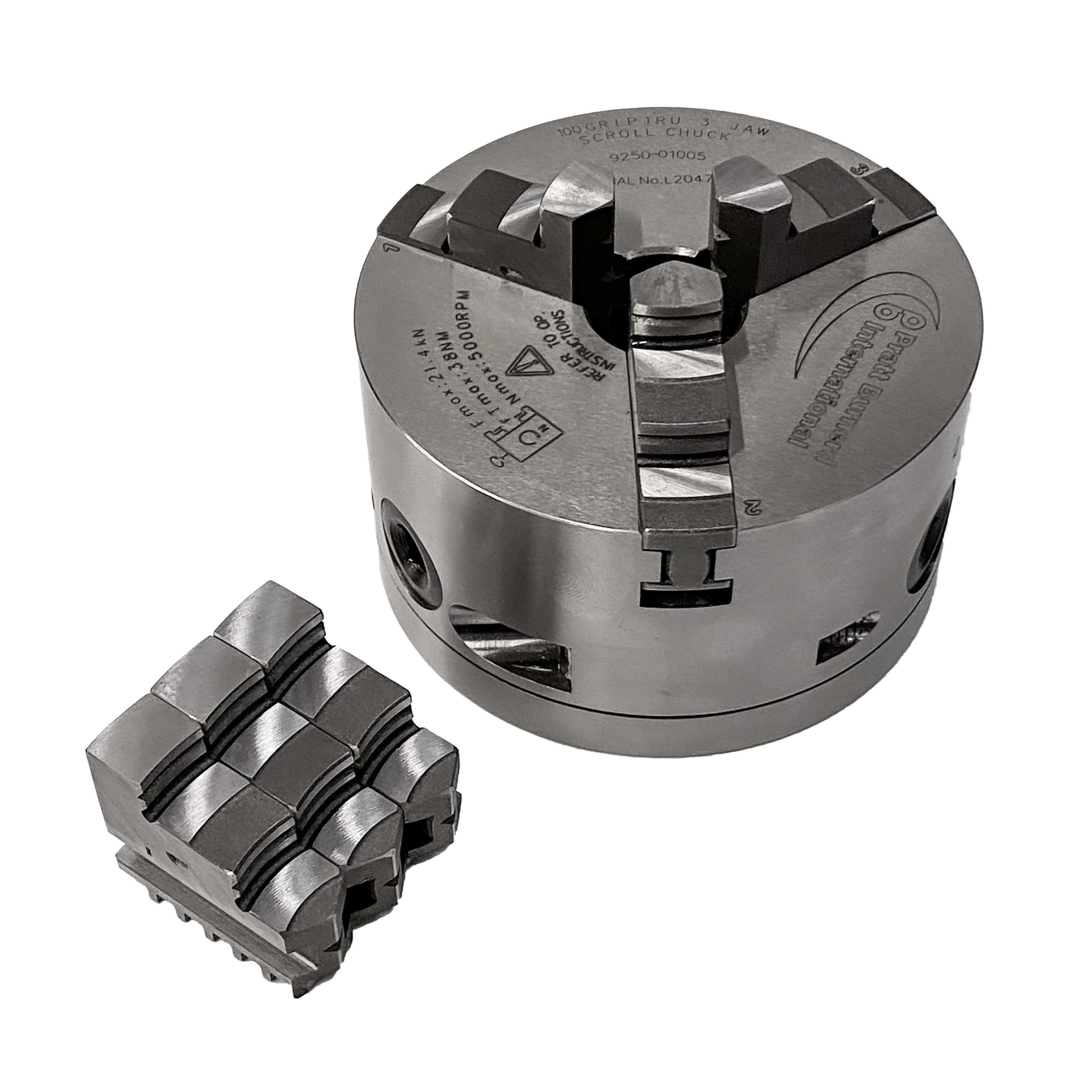

¦ Complete with one of set each hard inside and hard outside jaws
¦ High strength nodular iron bodies

These chucks require special adaptors, please contact the factory for details.
We supply soft blank jaws for all above models please ask for details
