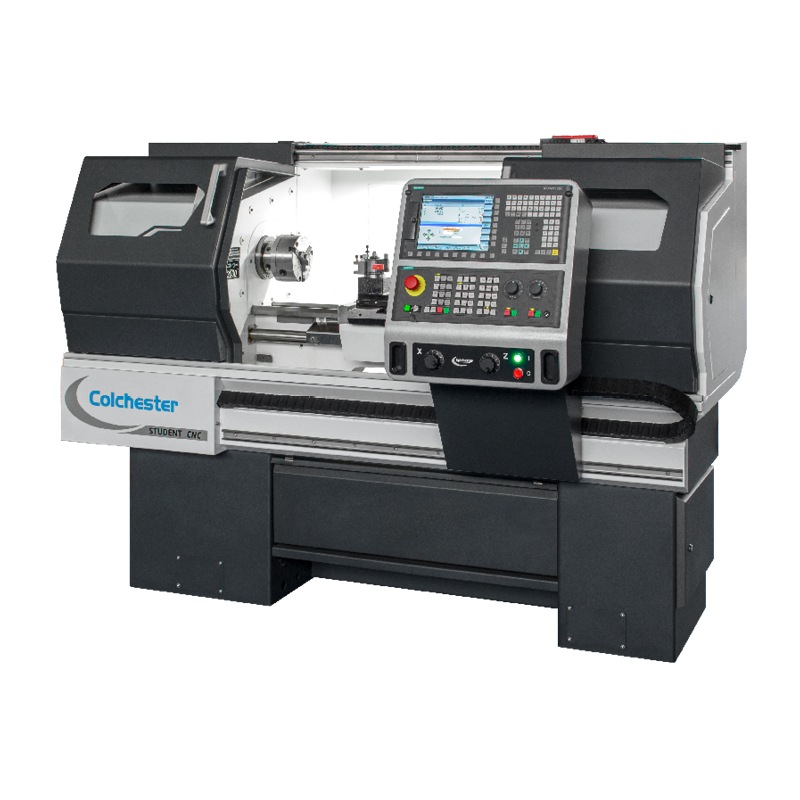

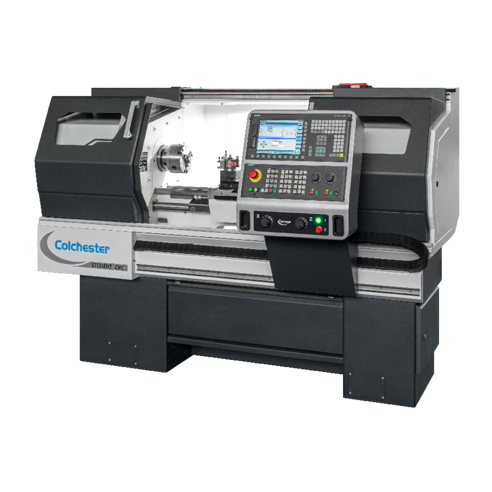

Colchester Student CNC

The compact Colchester Student CNC lathe is designed and engineered in the UK using the same construction as the market leading Colchester Student. Fitted with the latest Fanuc CNC controls gives the user ultimate flexibility in programming, including ISO, conversational Manual Guide i, or via CAD/CAM. Ideally suited for education and industrial applications.

2-Axis CNC Lathe

Swing Over Bed = 330 mm
Distance Between Centres = 1000 mm
Spindle Bore = 40 mm
CNC Control System = Fanuc 0i-TF Plus
Spindle Power (kW) = 5.5

Get in touch

The compact Colchester Student CNC lathe is designed and engineered in the UK using the same construction as the market leading Colchester Student.

Fitted with the latest Fanuc CNC controls gives the user ultimate flexibility in programming, including ISO, conversational Manual Guide i, or via CAD/CAM. Ideally suited for education and industrial applications.

Designed for fast, high-quality repeatability, accuracy and surface finish to exacting toolroom accuracy standards (DIN 8605), which ultimately significantly reduces component production costs.

Standard Features

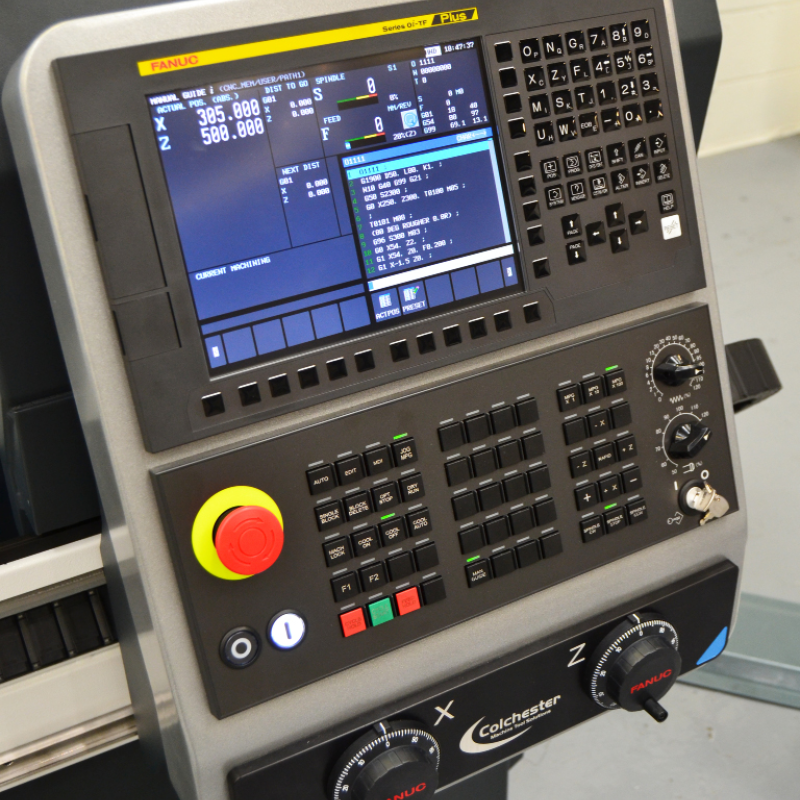

• FANUC 0i-TF Plus CNC control system with 10.4” colour screen
• Manual Guide I conversational programming system
• Alpha Link CAD/CAM offline programming software

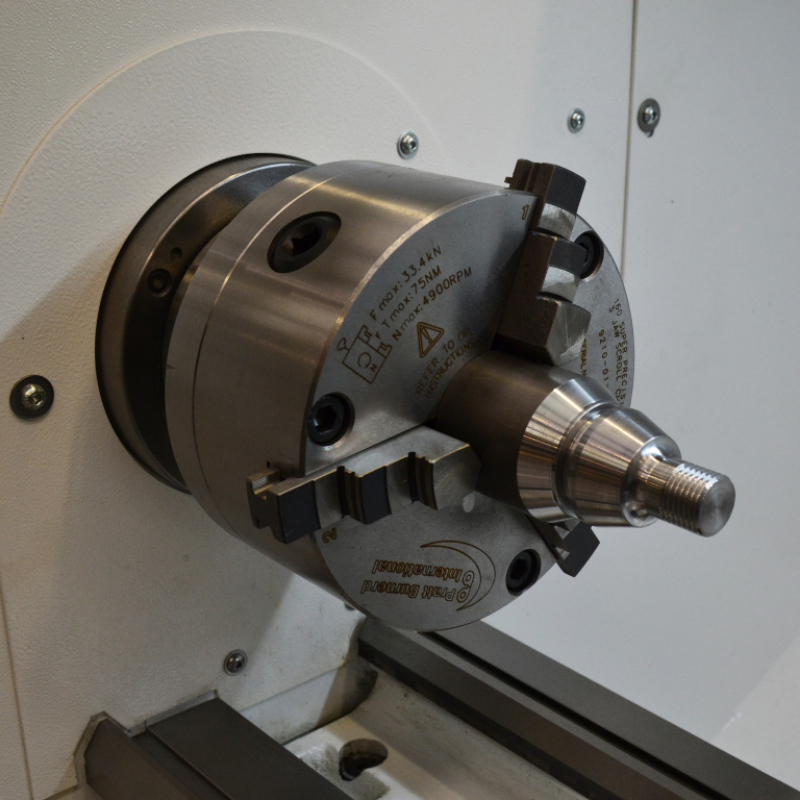

• PBI Super Precision 3-Jaw scroll chuck
• Dickson quick change tool post and tool holders
• Automatic slideways and ballscrew lubrication system
• Manual tailstock
• Coolant pump system
• Machine work light

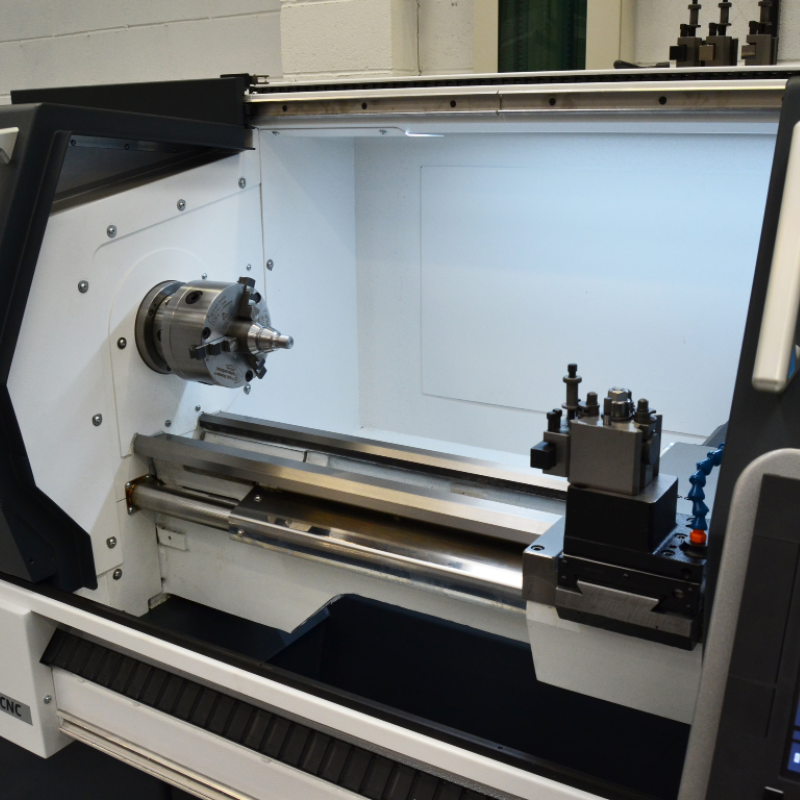

• Easy access to work zone
• Compact footprint
• Automation ready
• Industry 4.0 ready
• Easy installation

Optional Features

• Tooling packs
• 4-jaw independent chuck options
• Travelling and stationary steady rests
• Extended warranty contracts
• Service / maintenance contracts

For more information, please contact us on +44 (0) 1924 415 000 / sales@colchester.co.uk.

Swing Over Bed (mm)	330
Distance Between Centres (mm)	1000
Spindle Bore (mm)	40
Chuck Size (")	6
CNC Control System	Fanuc 0i-TF Plus
C-axis / Driven Tools	No
Spindle Speed (rpm)	3,000
Spindle Nose (Camlock)	D1-4
Spindle Power (kW)	5.5
Swing in Gap (mm)	480
Swing Over Cross Slide (mm)	210
